Flourish Electronics

• It is the best selection for mass production.
• Easy adjustment and operation.
• For increasing productivity the feeding speed can be adjusted freely.

• Three Models each for both M&C types. The differences are listed as follows.
• FL-608-MA/CA for Loose packed components.
• FL-608-MB/CB for taped packed components.
• FL-608-M/C for using on both taped and loose packed components.

• Three Models each for Processing Different Type of Packings:
•  Loose packed Model(FL-609-FA).
•  Taped Model(FL-609-FB).
•  Loose packed/taped combinative Model(FL-609-F).

•  The machine is specially designed for sleeving, pins cutting and forming of bulk or belted tubular fuses, and can sleeve heat shrinkable tube on tubular fuses or Teflon tube on both pins or sleeve both types of tubes together.
•  A special vibrating disk is equipped to feed bulk tubular fuses automatically.
•  Automation process: cut belts (or feed bulk tubular fuses)- clamp tubular fuses – line up pins – sleeve tubes on fuses- tubes shrink- sleeve Teflon tubes on pins – form – cut pins – discharge.
• Belted components are fed by special gears automatically, and bulk components by a vibrating disk.
•  Replaceable forming dies are easy to install, remove and replace.
•  The mechanical transmission structure and durable imported cams (guaranteed for 10 years) are used to guarantee that the machine works with high stability and precision.
•  The machine is featured by its frame made from Aluminum profile, compact structure and smaller dimension, and processing rate: 1500 pcs/hour at best.
•  It is equipped with Panasonic PLC and touch screen for precise control.
•  It is also equipped with durable imported SMC or Air TAC cylinder, magnet switch and solenoid valve.
•  The machine is widely used by factories producing power supplies based on its high stability and automation and can substitute for 3 – 8 workers.

• The machine is specially designed for tube sleeving and forming of axial components including belted inductors or resistors, fuses, diodes, etc..
•  A special vibrating disk is equipped to feed bulk resistors and tubular fuses automatically.
•  The machine is used for the cutting, tube sleeving (coil of heat shrinkable tubes or Teflon tubes) and forming of belted components, tubes can be sleeved on pins or components as required, and K-shape forming is available.
•  Specific forming dies can be used to form specific shapes, and length of sleeved tubes is adjustable.
•  The machine is equipped with Mitsubishi PLC and touch screen for precise control.
•  Separators position components precisely and several stations work cooperatively to finish the whole processes and get a higher qualified rate.
•  The machine is widely used by factories producing power supplies based on its high stability and automation, and can substitute for 3 – 6 workers.

• Linear feeder is installed to ensure suitable for all sizes with the addition of automatic bowl feeder. It will become fully automatic.
•  Special cutting design to insure easy adjustment and long life of cutting tools.
•  Light weave count, setting accurate, (part of optional accessories: counter) Easy maintenance and operation.

• This equipment is the exclusive equipment for cutting the pins of bulk radial components. It feeds by flat surface and it is appropriate for cutting pins of various components.
•  The cutting machine group and the vibrating feed group can operate separately or mutually, thus increase its scope of application.
• It can realize the operation of automatically sending materials of components including electrolytic capacitor(diameter 3-10mm, height not over 16mm), luminous diode (diameter3-8mm),transistor and part of ceramic capacitor and so on. Other allotypic radial components can also realize the operation of cutting pin by customized feed plate.
• The maximum processing speed reaches 300PCS/MIN, thus effectively cuts pin.
•  Appropriate for mass production and the best auxiliary equipment for short pin operation.
•  This equipment is comprised of three parts: cutting machine, vibrating feed plate and bracing trolley.
•  If there is any component that can not be fed by this machine, then customized vibrating plate is available. It adopts FL-803S type to finish the operation of cutting pin.

• Scope of application: electrolytic capacitor, luminous diode (LED), colloid metal film capacitor, inductance quartz crystals and radial components.
•  This machine is controlled by PLC and easy to operate and repair.
  The vibrating plate feeds automatically. The processes of clamping material, trimming pin, polarity test, veering, cutting pins and forming are finished at a time. If specially required, corresponding processes can be added.
•  Forming shape: straight line, incurvature, excurvature, 90 degrees, front and rear curvature, two-way curvature, long and short pin, and other shapes all can specially customize.
•  Adopts combined type mould, which is faster to replace. Every group of moulds is adjusted separately. Mould cutting tools are all made of Japanese materials.
•  Adopts elastic material clip, which avoids spoiling materials. Dispense with adjusting material clip if materials are of similar size.
•  The mould and cutter tool are all made of Japanese SKD-11 steel, which features good durability.

• Scope of application: electrolytic capacitor, LED, audion metal film capacitor and so on.
•  Forming shape: 90 degrees, incurvature, excurvature, front and rear curvature, K-shape, long and short pin, and other shapes specially customized.
•  Adopts combined type mould, which is faster to replace. Every group of moulds is adjusted separately. Mould cutting tools are all made of Japanese materials.
•  Clamp the noumenon to form shape, elastic material clip doesn’t spoil materials.

FL-810 Type Bulk Capacitor Forming Machine is the exclusive equipment for cutting the pin and forming of capacitor class components. This machine adopts PLC to control; the operator only needs to array the components on the straight vibration track. All other processes including getting material, cutting pin and forming and preparing material are automatically operated.

•  Suitable for various types of radial components.
•  For both forming and cutting operation or cutting only.
•  Customized model, Tailor made for assigned specification.
•  Automatic feeding and speed adjustable.

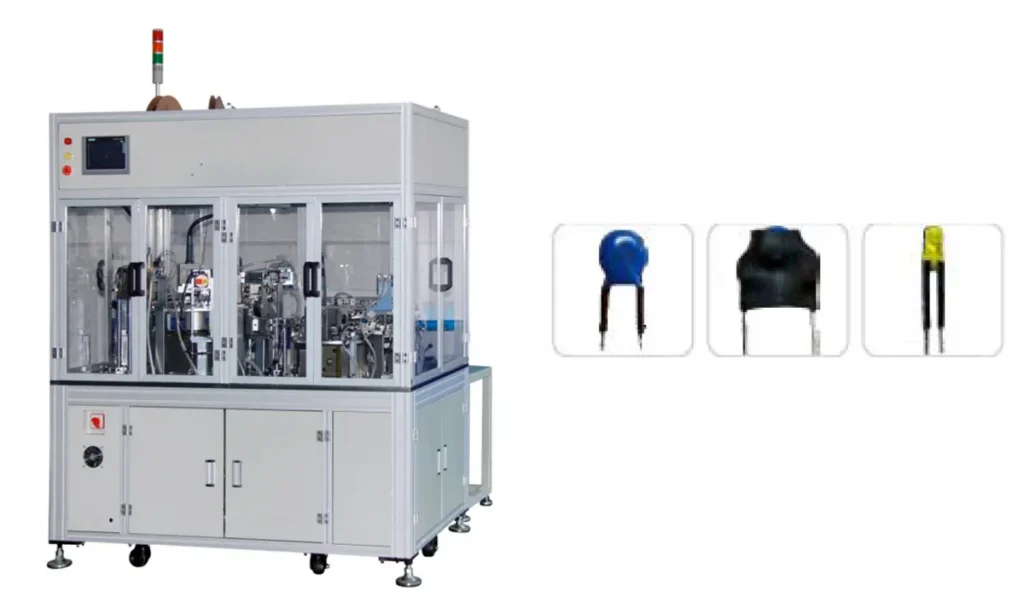

• The equipment is specially designed for casing the component leads and body for loose capacitor, Led and other radial components, and special equipment for cutting and forming.

• The components are automatically fed by vibrating plate, through the line guide feeding to turntable mechanism for casing tube and forming.
•  For electrolytic capacitor, LED and other polar components, other the polarity can be automatically identified, the order can be unified according to the fixed direction, meet the requirements of polarity discrimination when forming
• The high precision casing entry mechanism enables the heat-shrinkable casing or teflon tube to be accurately fitted into the capacitor/LED pins. The length of the casing can be adjusted.
• After casing tube the capacitor and led and other components, division of station forming and cutting. The dimension of cutting and forming can be adjusted, also can change the forming shape by replacing the forming mold.
• The processed components can automatically fall into the material box and count automatically.
•  The machine is equipped with Mitsubishi PLC and touch screen for precise control. Adopt CAM divider, running stably and accurately.
•  The whole operation of the machine is fully automatic, and no human operation is required except for the adding the capacitor /led to the vibration disk and installing the coil of tube.
•  All actions are divided in order, and the structure of each station is completely independent, which is convenient for debugging and replacement.
•  The machine is easy to operate and maintain.

• The machine is specially designed to screw triodes (MOS tubes)on radiators automatically.
•  A rotary disk is equipped and works cooperatively with stations to finish the whole process, radiators are placed on fixtures manually firstly, tubed triodes (MOS) are lined up and fed automatically and then coated by the heat conducting oil after pins are cut and formed, processed triodes are clamped and positioned on radiators for screwing automatically, one radiator can be screwed with several triodes(MOS) at different stations, and screwed products are conveyed by a special small conveyor belt at last.
• Different dies can be installed to process different radiators, and one radiator is screwed with 3 triodes (MOS) at most in general, but more stations can be customized for locking more screws on one radiator.
•  The machine is equipped with Mitsubishi PLC and touch screen for precise control.
•  Separators position components precisely to keep high stability and get a higher qualified rate.
•  It can substitute for several workers based on its high automation, and so it is widely used by factories producing power supplies.

• The equipment is designed specially to screw triodes(MOS tubes)on radiators automatically.
• The equipment adopts the working principle of turntable high-precision separator al actions are divided in order, the divided into the following two types:
  1. Transistor nut radiator locking: The rut automatically is fed by vibrating plate-Manipulator grabs the fixture of automatic feeding on the turntable–Tube or loose triodes automatically forming and shears arrangement—Automatic feeding on the nut in the fixture-Apply radiator oil—Place the radiator on the triode—The screw automatically feeds and locks—After locking the product, take out the product by manipulator. And so on and so on.
  2. Transistor nut-free radiator locking: Radiator is placed on fixture–Tube triode(MOS)is lined up and fed automatically–After cutting forming and apply radiator oil, processed triodes are clamped and positioned on radiator for locking automatically, one radiator can be locked with several triodes(MOS) at different station—-After locking the product, take out the product by manipulator. And so on and so on.
• All locking actions are completed automatically. Different dies can be installed to process different radiators, and one radiator is screwed with 3triodes (MOS) at most in general, but more stations can be customized for locking more screws on one radiator.
• All locking actions are completed automatically. Different dies can be installed to process different radiators, and one radiator is screwed with 3triodes (MOS) at most in general, but more stations can be customized for locking more screws on one radiator.
• The machine is equipped with Mitsubishi PLC and touch screen for precise control.
• Separators position component precisely to keep high stability and get a higher qualified rate.
• It can substitute for several workers based on its high automation, and so it is widely used by factories producing power supplies.

•  Most suitable for tube packed power.
•  Transistors or similar components.
•  Exchange tooling set to ensure exchange easily and swiftly.
•  Drawer type tooling set to ensure exchange easily and swiftly.
•  Easy Operation and maintenance.
•  Automatic feeding the loose components if equipped with vibrant bowl feeder.
