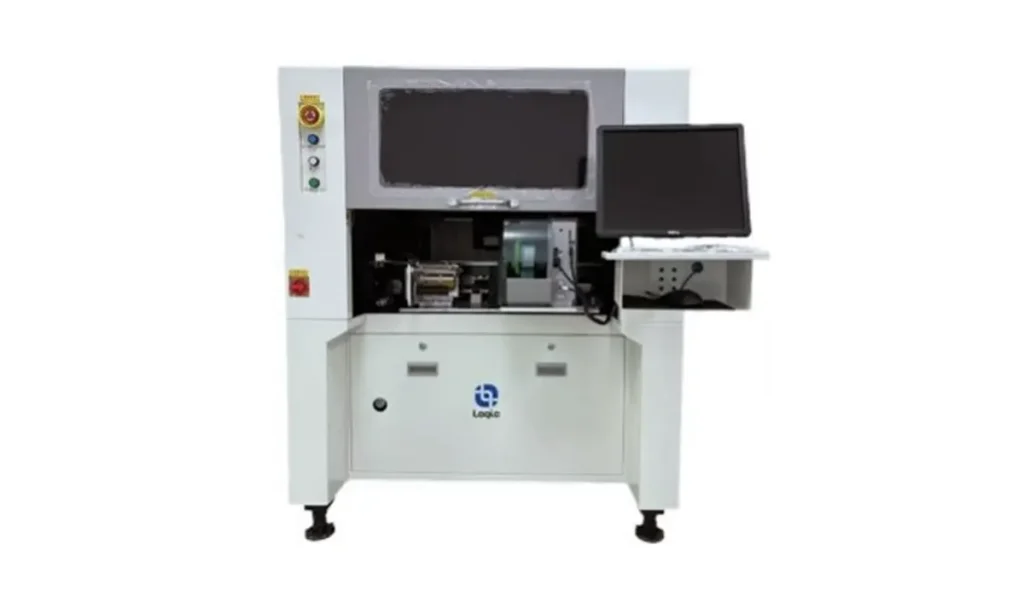

Fully Automatic Online Label Printing & Placement Machine
- Strong Flexibility:
Rapid label template switching and easy adjustment of placement parameters allow adaptation to various product types, label contents, and placement positions. - Precision & Consistency:
Equipped with advanced sensors and control systems for precise printing and placement, minimizing misalignment and ensuring consistent product appearance. - Enhanced Efficiency:
Integrates printing and labeling in one process, eliminating manual steps and significantly boosting efficiency. - Configurable Setup:
Includes one feeder + one label printer. Feeder accommodates a wide range of material sizes with simple baffle adjustments; output length automatically adjusts per production program. - Label Size Range:
Supports material sizes from 2mm × 2mm to 100mm × 40mm; online label printing supports labels as small as 6mm × 6mm.
Fully Automatic Auxiliary Material Placement Machine – Model: T2D
Ideal for the placement of auxiliary materials on:
- PCB, FPC
- Smartphone mid-frames, back covers, motherboards, lenses
- Laptop motherboards, outer shells
- Brackets, metal components, chips, electronic parts
Supported materials: pressure-sensitive adhesives, PI, conductive adhesives, double-sided tapes, thermal gels, graphite sheets, shielding covers, labels, protective films, ring foams, conductive foams, high-temp tapes, texture films, explosion-proof films, etc.
- Wide Material Compatibility:
Supports multiple materials and application scenarios.
- High-Speed & Multi-Material Placement:
Equipped with 4 independently controlled placement heads (Z and rotation), supporting simultaneous placement of up to four different materials. - High Precision Build:
Reinforced high-precision steel frame and granite beam ensure long-term stable production. Calibrated using laser interferometers for delivery accuracy of ±0.05mm. - Smart Control + MES Ready:
Self-developed software optimized for Industry 4.0. Intuitive operation system plus optional MES integration module.
