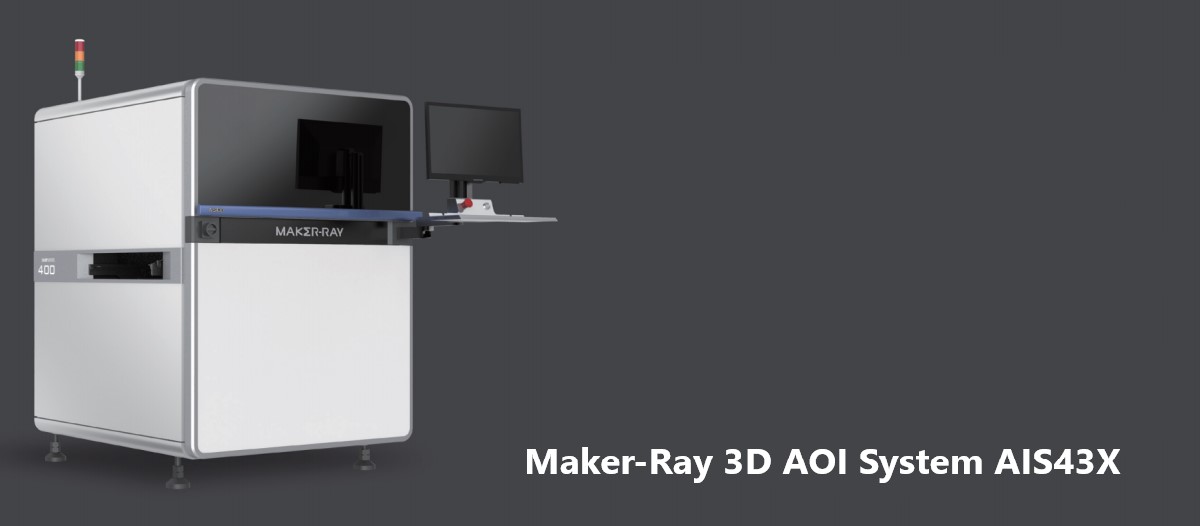

Maker-Ray 3D AOI System AIS43X

Inline PCBA AOI for SMT Components (3D)
To inspect defects of SMT components and solder
3D imaging, minimizing shadow problems

Core Advantages

• Intelligently remove noise with depth map. Solve distortion problem in 3D imaging
• Measurement height can be configured, meeting a variety of inspection requirements
• Dynamic self-adoption reference plane algorithm to calibrate substrate height
• Multi-frequency four-step phase algorithm to strengthen robustness, avoiding influence of illumination changing imaging

Defect Type | SMD

Defect Type | Solder

Specification

Maker-Ray​ Solder Paste Inspection System​ AIS63X​

Inline Solder Print Inspection
To Inspect solder print defects such as insufficient solder, excess solder and thickness defect etc

Core Advantages

• 3-point verification
• Realize closed-loop function combining printing machine
• NG board flying identification function & chip mounter BadMark point sharing function
• Minimalist programming, easy operation, multi-machine interconnection can be realized
• Support whole board image storage
• Realize real-time SPC monitoring and analysis

Defect Type

Tracing system and 3-point verification function

Specification
